1060 Aluminium Strip description

1060 aluminium strip is a pure aluminum strip product with an aluminum content of more than 99.6%.

It has excellent formability, weldability and corrosion resistance. It is mainly used for transformer windings, cables, and injection bottle sealing.

If you are looking for 1060 aluminum strip, welcome to buy or wholesale aluminum products from our factory.

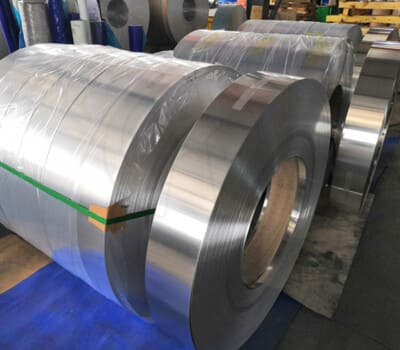

1060 Aluminium strook

What is the chemical composition of 1060 stripe aluminium?

1060 Aluminium Strip Classification (Application)

1060 aluminum strip for transformer

The electrical and thermal conductivity of aluminum is lower than that of conventional metal copper, but the price of copper is much higher than that of aluminum.

so aluminum strip has become one of the most commonly used materials for current transformers.

1060 aluminum foil with low price and high conductivity is suitable for transformer and electrical industry, especially dry-type transformer industry. It can replace copper tape and reduce product cost.

strip aluminum for transformer winding

Specification

• Tempering: O, H14, H24
• Dikte: 0.1mm–3.0mm
• Breedte: 20–1200mm
• Elongation: >25%
• Max. 20 degree resistance: ≤0.02825Ω Mm2/m
• 20 degree density: 2.703kg/dm3
• Protection: Paper Interleaved
• Packing: eye to wall, eye to sky, wooden pallet, wooden box
• Surface treatment: smooth surface, no scratches and impurities
• Conductivity: Transformer windings made of 1060 O are guaranteed to be better than 61.5 % ACS in the annealed state
• Paper core inner diameter: Ø 150mm, Ø300mm, Ø400mm, Ø500mm paper core, special inner diameter core and special request without paper core

1060 Aluminium Strip thickness

What are the features of Aluminum Strip For Transformer Winding?

According to analysis, the chemical composition of winding materials, hot rolling, cold rolling, heat treatment process conductivity, hardness and mechanical properties will affect the application in transformer windings.

The manufacture of transformer windings has high requirements on many technical indicators such as conductivity, burrs, side bends and surface quality of aluminum strips and foils.

1060 Aluminium strip roll outer diameter

The 1060 aluminium strip for transformers is of reliable quality and has the following characteristics:

1. High conductivity, soft, smooth surface, no burr, high quality.

2. The aluminum content is more than 99.6%, also known as pure aluminum, and the price has a huge advantage over other high-grade aluminum alloys.

3. With good elongation and tensile strength, it can fully meet the high formability requirements of conventional processing (stamping, stretching).

4. High plasticity, corrosion resistance, electrical conductivity and thermal conductivity, but low strength, heat treatment cannot be improved, and poor machinability

5. Gas welding, hydrogen welding and resistance welding are possible, and it is not easy to braze.

6. It is suitable for processing, stretching and bending under various pressures.

Surface Type:
a. Ordinary calendered aluminum strip
b. Various color coating paint
e. Clear coat/clear coat on both sides

Specification:

• Allooi: 1060
• Gemoed: O
• Elongation: 20%
• Dikte: 0.17-0.23mm
• Breedte: 50-900mm
• Coil inner diameter: 76mm 152mm
• Packing: export standard wooden box

1060 Aluminium strip for Cable

Why is 1060 aluminum strips one of the most suitable cable wrapping raw materials?

a. Mature processing technology and lower price.

b. Aluminium strips are lighter than other candidates because they are very less dense, and lighter materials are safer to hang in the air.

c. When used for cable wrapping, aluminum strips has the advantages of good tensile strength, ductility, flexibility, connectivity, bearing capacity, corrosion resistance and matching degree with electrical products.

d. Both 1060 aluminum strips are more flexible than copper tapes.

e. In addition, aluminum strip cables have excellent load-carrying capacity, especially self-supporting capacity. An aluminum wire can be as long as 4000 meters without falling, while a copper cable can only reach 2750 meters.

1060 Aluminium strip for Cable

1060 Aluminium Strip Quality Control

We have passed ISO9001 quality management system certification.

Quality control process:

• 1) Inspection of aluminum raw materials after arriving at the factory – quality control of incoming materials
• 2) Check the details before running the production line
• 3) Comprehensive inspection and route inspection in the slitting production process – process quality control
• 4) Check aluminium strip 1060 after production – final quality control
• 5) Check the aluminum 1060 strips before shipment

At the same time, if you need, we will help you to take photos and videos of the aluminum strip. Every product will be thoroughly and carefully tested before being packaged and shipped.

1060 aluminium strip product packaging

• Standard export wooden pallets or crates. We can also meet the special requirements of customers.
• Delivered in coil form, with a cardboard core inside, the sheets are staggered.
• Both eye-to-wall and eye-to-sky are available.

1060 Aluminium strip package
