Unleashing Durability: The Versatile Brilliance of 16 Gauge Aluminum Diamond Plate

Aluminum diamond plate has become a staple in industries that demand strength, style, and safety in one package. Among the many options on the market, 16 gauge aluminum diamond plate strikes a compelling balance between durability, weight, cost, and workability.

This article takes a deep dive into what makes 16 gauge aluminum diamond plate so versatile and effective. You’ll learn how it performs in real-world environments, how it compares to other gauges and materials, where it works best, and what to look for when choosing a supplier—highlighting the capabilities

16 Gauge Aluminum Diamond Plate

What Is 16 Gauge Aluminum Diamond Plate?

Understanding “16 Gauge”

In metalworking, “gauge” refers to thickness. For aluminum, 16 gauge is approximately:

• Thickness: about 0.063 inch (1.6 mm)

Exact thickness can vary slightly by standard and manufacturer, but this value is widely accepted in North American markets.

In practical terms, 16 gauge aluminum diamond plate is:

• Thick enough to handle moderate loads, daily wear, and occasional impact
• Thin and light enough to be cut, formed, and installed without heavy equipment

It occupies a sweet spot between lightweight utility and heavy-duty resilience.

What Makes It “Diamond Plate”?

“Diamond plate” (also known as tread plate, checker plate, or chequered plate) refers to an aluminum sheet with a raised pattern of diamonds or lines on one side. This pattern:

• Increases slip resistance
• Adds rigidity without increasing thickness
• Enhances visual appeal, giving a rugged, industrial look

The raised pattern is typically rolled into the plate during production, forming a permanent texture.

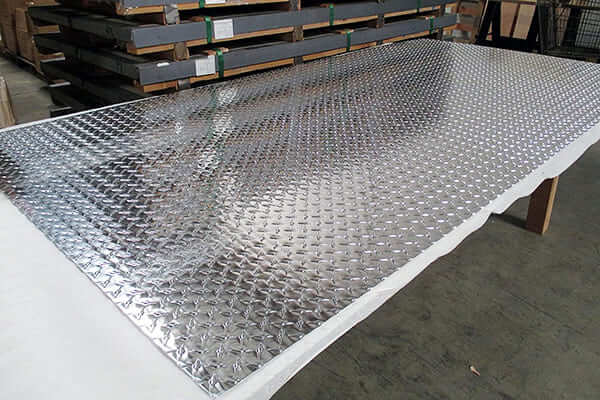

Aluminum Diamond Plate Surface Display

Typical Alloys Used

Most 16 gauge aluminum diamond plate comes in a few common alloys, each with different strengths:

3003-H22 / H24

• Good corrosion resistance
• Excellent workability and formability
• Moderate strength
• Often used for decorative panels, truck tool boxes, interior surfaces

5052-H32

• Higher strength than 3003
• Superior corrosion resistance, especially in marine and coastal environments
• Good weldability
• Ideal for boat docks, marine steps, exterior vehicle bodies, and industrial flooring

6061-T6

• Very high strength
• Good machinability
• Lower formability (less suitable for tight bending)
• Used where structural performance matters more than formability

.

Key Technical Properties of 16 Gauge Aluminum Diamond Plate

Physical and Mechanical Properties

While exact values depend on alloy and temper, 16 gauge aluminum diamond plate typically offers:

These properties translate into a material that can flex slightly under load without cracking, withstand moderate impact, and resist long-term fatigue under everyday use.

Load-Bearing and Structural Behavior

The raised diamond pattern adds stiffness to the plate, especially in bending. Under typical load scenarios:

• A 16 gauge aluminum diamond plate supported at reasonable spans (e.g., 300–400 mm) can handle foot traffic in many light-duty applications.
• For heavier loads (e.g., pallet jacks, forklifts), engineers often move to thicker gauges (e.g., 0.125″ / 11 gauge or more) or closer support spacing.

For frequent pedestrian use, 16 gauge often performs well in:

• Vehicle steps
• Tool box lids
• Truck bed overlays
• Light-duty mezzanine walkways with close support spacing

For industrial floors, engineers typically review load tables, consider deflection limits, and choose the plate thickness and alloy accordingly.

Bending Test of Aluminum Diamond Plate

Why 16 Gauge Aluminum Diamond Plate Stands Out

Optimal Balance: Strength vs. Weight

Compared to thicker plates, 16 gauge offers:

• Lower weight for easier handling and lower fuel consumption in transport applications
• Sufficient strength for many real-world use cases
• Lower overall cost per project due to reduced material consumption and easier installation

For example, a 4′ x 8′ sheet of 16 gauge aluminum diamond plate typically weighs around 40–45 lb, while a steel plate with similar strength could weigh more than 100 lb. That difference matters in:

• Vehicle payload capacity
• Fuel economy
• Labor safety during installation

Slip Resistance and Safety

The raised diamond pattern provides enhanced traction, especially when surfaces get wet or oily.

Studies on textured metal surfaces show a reduction in slip incidents when compared with smooth metal, particularly in industrial environments where contaminants are common.

Applications where this matters:

• Truck steps and decks
• Loading dock plates
• Work platforms
• Boat decks and ramps

While no surface is fully “slip-proof,” diamond plate significantly improves friction over flat aluminum sheets or painted steel without texture.

Corrosion Resistance

One of the most important advantages of 16 gauge aluminum diamond plate, especially in 5052 alloy, is its resistance to corrosion:

• It forms a thin, stable oxide layer that protects the base metal
• It resists salt spray better than many steel alloys, even when uncoated
• It performs well in humid, outdoor, and coastal environments

This corrosion resistance reduces:

• Maintenance costs (less repainting, fewer replacements)
• Downtime (less frequent repairs)
• Long-term ownership costs

Aesthetic Appeal

The iconic look of aluminum diamond plate delivers both function and style:

• Bright metallic sheen
• Industrial, rugged appearance
• Easily cleaned surface (dirt often collects around diamonds but wipes away)
• Can be polished, anodized, or powder coated for custom colors and finishes

Designers use 16 gauge aluminum diamond plate in retail, hospitality, and residential contexts when they want a “technical” or “industrial chic” feel.

16 Gauge Aluminum Diamond Plate for Truck Beds

16 Gauge vs Other Gauges and Materials

16 Gauge vs Thinner Gauges (e.g., 18 or 20 Gauge)

Thinner aluminum diamond plates, such as 18 or 20 gauge, weigh less and cost less per sheet, but they have trade-offs.

16 gauge advantages:

• Better dent resistance
• Less flex under foot traffic
• More durable in vehicle and equipment applications
• More forgiving under minor impacts and abrasion

Thinner gauge advantages:

• Lower cost per sheet
• Easier to cut with light tools
• Suitable for purely decorative uses (wall cladding, trim)

Use 16 gauge when you expect physical loads, not just aesthetics.

16 Gauge vs Thicker Plates (e.g., 0.125″/11 Gauge)

Thicker diamond plates deliver significantly higher load capacity.

Thicker plate advantages:

• Higher structural strength
• Suitable for forklift traffic, heavy machinery, and high-impact environments
• Less vibration and bounce

16 gauge advantages:

• Lower material cost
• Easier handling and installation
• Better for weight-sensitive applications like trucks and trailers

For heavy industrial floors and loading docks, thicker plates often make sense. For trucks, stairs, and interior surfaces, 16 gauge usually hits the sweet spot.

Aluminum Diamond Plate vs Steel Diamond Plate

Steel diamond plate is another popular choice, especially in industrial settings. However, aluminum and steel differ in important ways:

For weight-sensitive and corrosion-critical applications, 16 gauge aluminum diamond plate usually outperforms steel. For extremely heavy loads where weight is less of an issue and budgets are tight, steel may still be preferred.

Common Applications of 16 Gauge Aluminum Diamond Plate

Automotive and Transportation

16 gauge aluminum diamond plate sees extensive use in the automotive and transport sectors:

• Truck Beds and Trailers
• Protective bed liners
• Trailer floors and ramps
• Wheel well covers
• Steps and Running Boards
• Low-profile, high-traction surfaces
• Lightweight compared to steel alternatives
• Tool Boxes and Storage
• Weather-resistant, lockable storage boxes
• Side and underbody truck tool boxes

Fleet operators often choose 16 gauge for its combination of durability and fuel savings over the vehicle’s life.

Container Used Aluminum Diamond Plate

Industrial and Commercial Facilities

Manufacturing plants, warehouses, and commercial buildings use 16 gauge diamond plate in multiple ways:

• Machine platforms and access steps
• Protective guards around equipment
• Floor overlays in high-traffic walking zones
• Kick plates and wall protection in loading areas

Its resistance to corrosion and wear reduces long-term maintenance efforts, especially in environments with moisture, oils, or cleaning chemicals.

Marine and Coastal Environments

Aluminum diamond plate, particularly in 5052 alloy, performs well in marine settings:

• Boat decks and steps
• Dock surfaces and gangways
• Marina ramps and access platforms

The combination of non-slip texture and saltwater resistance makes it a strong choice where steel would rust quickly and need aggressive protection.

Architectural and Interior Design

Beyond purely functional roles, 16 gauge aluminum diamond plate appears in architecture and interior design:

• Wall panels in garages, workshops, and retail stores
• Counter fronts and bar faces
• Elevator cab interiors
• Decorative trims and corner guards

Designers often use it when they want a robust surface that also makes a visual statement.

Residential and DIY Projects

Homeowners and DIY enthusiasts use 16 gauge aluminum diamond plate for:

• Garage wall panels and backsplashes
• Workbench surfaces and tool cabinet skins
• Stair treads and porch steps
• Utility trailer upgrades

Its ease of cutting and drilling means many projects remain accessible using basic tools, especially in thinner sheets and with proper safety practices.

Choosing the Right Alloy and Finish

Alloy Selection: Matching Performance to Environment

3003

• Ideal for indoor use, decorative panels, and moderate-duty applications
• Good balance of cost, formability, and corrosion resistance

5052

• Best for outdoor, marine, or high-corrosion environments
• Stronger than 3003, better for structural or semi-structural roles
• Suitable for trailer floors, boat decks, outdoor steps

6061

• Used when high structural strength is paramount
• Less formable; better for flat panels than intricate bends
• Requires more care when forming to prevent cracking

Surface Finish Options

Mill Finish

• Uncoated, slightly matte or semi-reflective surface
• Economical and widely used
• May show rolling marks or minor scratches

Polished Finish

• Highly reflective, almost mirror-like
• Ideal for decorative and display applications
• Requires more care to maintain appearance

Anodized Finish

• Electrochemical process that thickens the oxide layer
• Enhances corrosion resistance and hardness
• Can be color-anodized (black, bronze, etc.)

Powder Coated or Painted

• Adds color and extra protection
• Improves scratch resistance
• Used for branding, visibility, or to match design schemes

Thickness and Pattern Considerations

Even within “diamond plate,” pattern size and distribution vary:

• Standard diamond pattern
• Most common; suitable for general use
• Larger or smaller diamonds
• Larger diamonds can increase traction and visual impact
• Smaller patterns may clean more easily and look more refined

Additionally, some users specify flat-back vs pattern-back sheets depending on whether they need a completely flat underside for secure bonding to substrates.

FAQs

1. How thick is 16 gauge aluminum diamond plate?

For aluminum, 16 gauge is approximately 0.063 inch (1.6 mm) thick. This is a widely used thickness for light to medium-duty applications such as truck steps, tool boxes, and interior floor overlays.

2. Is 16 gauge aluminum diamond plate strong enough for truck beds?

For light-duty and medium-duty trucks, 16 gauge aluminum diamond plate often works well as a bed liner or overlay. For heavy loads or concentrated point loads (e.g., heavy machinery), some users choose a thicker plate (such as 0.100″–0.125″) or add more structural support beneath the plate. Always evaluate load requirements and consult with the supplier or a structural engineer if in doubt.

3. Does aluminum diamond plate rust?

Aluminum does not rust like carbon steel. Instead, it forms a thin oxide layer that protects against further corrosion. In highly corrosive environments (like saltwater exposure), choosing an alloy such as 5052 and following good design practices (drainage, avoiding trapped moisture, minimizing galvanic contact with incompatible metals) further enhances longevity.

4. Can I weld 16 gauge aluminum diamond plate?

Yes, 16 gauge aluminum diamond plate can be welded. Common methods include MIG and TIG welding. Alloy choice affects weldability:

• 3003 and 5052 weld easily
• 6061 requires more care and may need post-weld heat treatment for optimal strength

Use compatible filler rods and follow welding best practices to maintain strength and appearance.

5. Can aluminum diamond plate be painted or powder coated?

Yes. Aluminum diamond plate can be:

• Painted after proper surface preparation (degreasing, light abrasion, primer)
• Powder coated, which provides a durable, uniform finish

Powder coating is widely used when color, branding, or additional surface protection are required.

6. Is 16 gauge or 1/8″ diamond plate better for stairs?

• 16 gauge (0.063″) works for light-duty stairs and residential use with appropriate support.
• 1/8″ (0.125″) diamond plate is more robust and preferred for commercial or industrial stairs with heavy traffic.

The choice depends on expected load, span, safety requirements, and applicable building codes.

Conclusion

16 gauge aluminum diamond plate delivers an effective blend of durability, light weight, slip resistance, and visual appeal. It fits into a wide spectrum of applications—from truck beds and stairs to boat decks, factory floors, and architectural accents.

Key advantages include:

• Strong enough for many real-world loads without unnecessary weight
• Excellent corrosion resistance, especially in alloys like 5052
• Enhanced safety due to textured, non-slip surface
• Long service life and low maintenance, keeping lifecycle costs under control
